Insite Remote Access Solution

Insite is Inmotion Robotic's customized Secomea Solution providing robust, secure remote machine access.

Solutions range from simple Engineer to Machine access, to data logging, and integrated Application Modules such as Machine Power Consumption Modules, Plant Productivity Signage, Machine Information Modules, and Programming Modules.

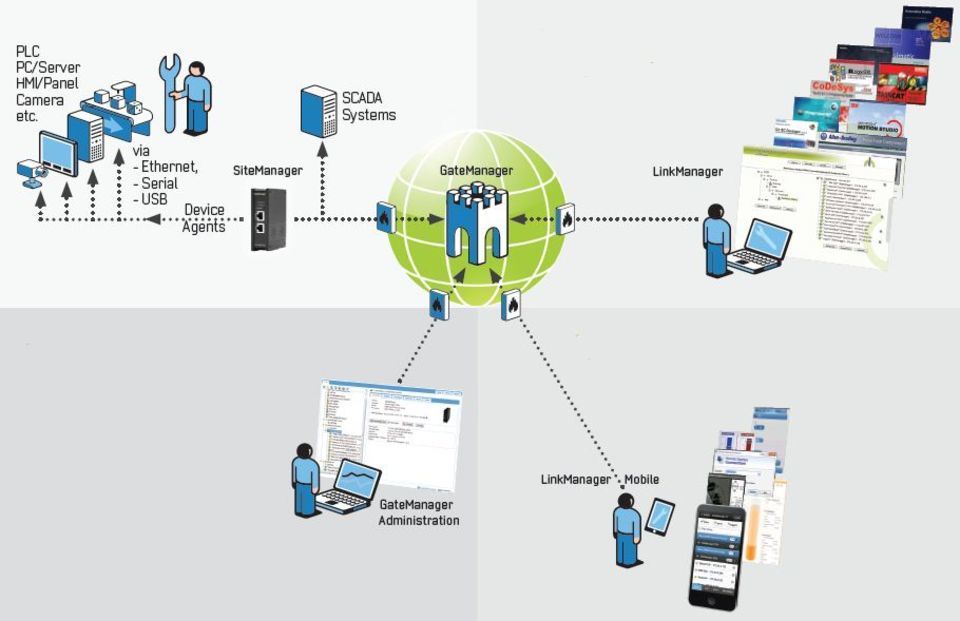

System layout20140320 32320 n5fly8

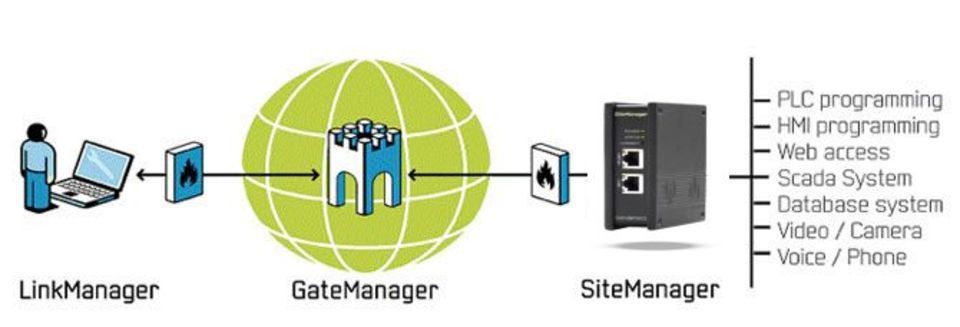

Insite's Secomea System Layout

Basic Starting Components

The basic starting components of any Insite installation consist of the following four items.
1) The Site Manager, which can be packaged into a machine add-on module. This provides the interface from the machine to the GateManager.
2) The Gate Manager Administrator account, which is used to manage the GateManager server, manage LinkManager licenses and monitor Site Managers.
3) The Link Manager Floating License, which the engineer uses to access the remote machine.
4) The Link Manager Mobile License, which the engineer can use to view machine performance from his Apple or Android cell or tablet.
Sitemanagerchart220140320 32320 8z71r9

Various Site Manager Models avalable

The are currently eight Site Manager modules available. The 1000 series Site Managers offer one Device Port, while the larger 3000 series Site Managers offer four Device Ports. All model's come with an Uplink port for wired or an optional add-on Wifi interface to connect to the cloud. Two models are available in each series with either built in 3G wireless capability for plants without networking infrastructure, or as an add-on option.

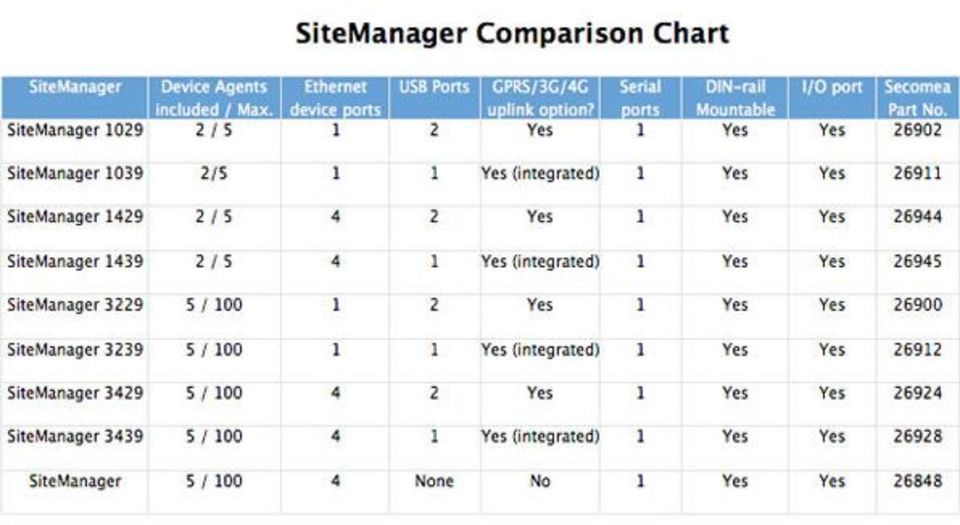

Various Site Manager Models

Sitemanagercomparisons20140320 15086 1o7fnkd
Site Manager Models
